mechanical connectors
Pipes joined using nuts and threaded metal parts; a gasket is inserted to tighten them, thus preventing leakage.
See mechanical connectors in :
french
|
spanish

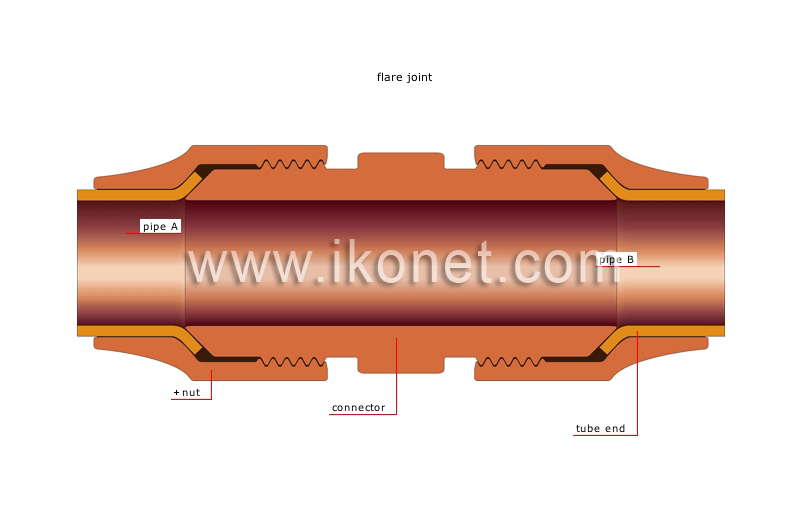

flare joint
Threaded part over which two tubes having bell-shaped ends can be tightened by a nut.
tube end
Flared end of a pipe.
connector
Threaded part joining two pipes.
nut
Metal part used to tighten the end of a tube onto the fitting.
nuts
pipe B
pipe A
