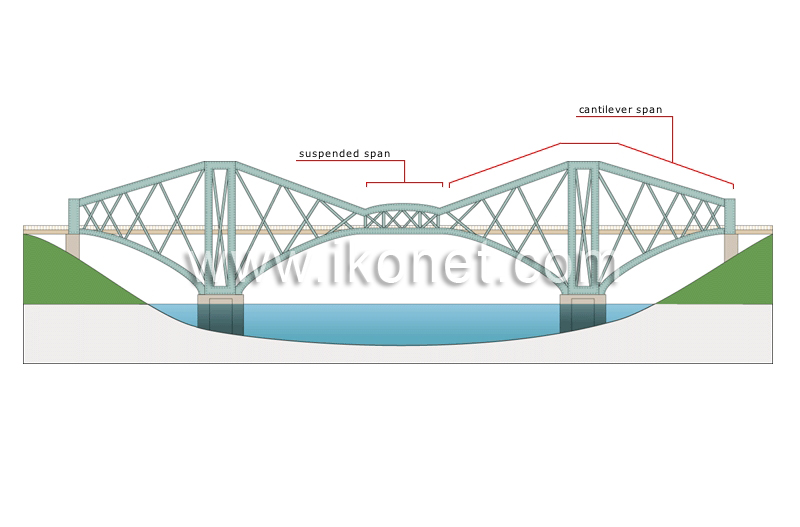

Bridge whose two main spans extend toward each other and support a short suspended span, which bears less load.

See cantilever bridge in : french | spanish

Short center span resting on the ends of the two cantilever spans.

Span with a complex framework on each side of a central pillar; one end of the span rests on the ground and the other supports a suspended span.
